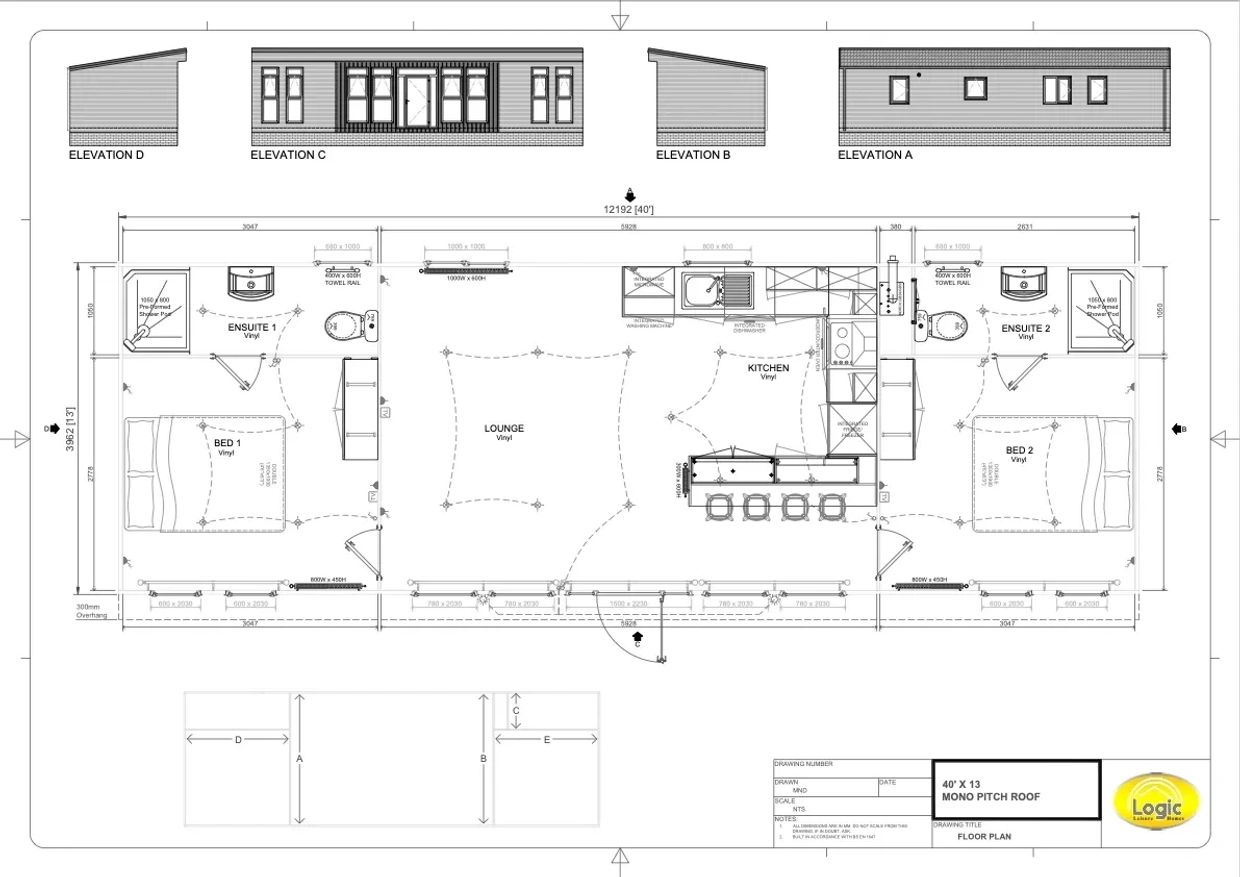

This floor plan outlines a Logic 40′×13′ unit featuring a Mono Pitch Roof. Unlike typical residential layouts, this design places the living quarters at the center, flanked by two nearly identical bedroom suites at either end.

The middle section of the unit serves as the primary social space, featuring vinyl flooring throughout:

• Lounge: A central seating area with large windows and integrated lighting points.

• Kitchen: An L-shaped kitchen area equipped with a sink, prep space, and an integrated fridge freezer.

• Dining Space: A breakfast bar area with seating for four is positioned adjacent to the kitchen counters.

• Entry: The main entrance is located centrally, leading directly into the kitchen and lounge area.


The layout is symmetrical, providing privacy by separating the two bedrooms:

• Bedroom 1 (Left): Features a large bed, built-in storage, and vinyl flooring. It includes a private Ensuite 1equipped with a 1050×800 pre-formed shower pod, toilet, washbasin, and a 400W×600H heated towel rail.

• Bedroom 2 (Right): Mirrors the first bedroom with its own bed and storage. It also contains Ensuite 2, which features a matching shower pod and heated towel rail.


• Footprint: The unit measures 12192 mm (40 feet) in length and 3962 mm (13 feet) in width.

• Elevations: Four exterior views (A, B, C, and D) illustrate the mono-pitch roofline, which slopes in a single direction, and the placement of high-level windows.

• Design Detail: The plan notes a 300mm overhang on the roof structure.

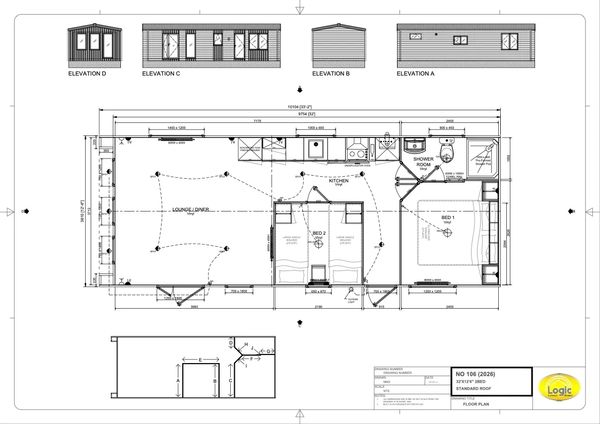

This floor plan details the NO 106 (2026) model, a 2-bedroom unit measuring 32′×12′6" with a Standard Roof. The interior features vinyl flooring throughout the living areas, bedrooms, and bathroom.

The left side of the unit is an open-concept social space:

• Lounge / Diner: A large area taking up the left portion of the floor plan, featuring multiple spot lighting points and large windows. It includes a 1200×1865 door/window assembly on the bottom wall.

• Kitchen: Centrally located with an L-shaped counter, featuring a sink, an under-counter oven, and an integrated fridge/freezer. A 1000×600 window is positioned above the sink area.

• Entrance: The main entry door (765×1865) is located near the kitchen and is equipped with an outside light.


The right side of the unit houses the private living quarters:

• Bed 1: The primary bedroom at the far right of the unit, measuring approximately 2450 mm in width. It features a large bed and a 1200×1200 window.

• Bed 2: A smaller twin room located between the kitchen and the primary bedroom. It measures 2190 mm in width and includes two single beds.

• Shower Room: Positioned across from Bed 2, it contains a pre-formed shower pod (1050 mm deep), a toilet, a washbasin, and a 400W×1000H heated towel rail.


• Dimensions: The external length is 9754 mm (32′) with an overall length of 10104 mm (33′−2"). The width is 3810 mm (12′−6").

• Elevations: Four views (A, B, C, and D) show a traditional pitched roof design and the distribution of windows across all sides of the structure.

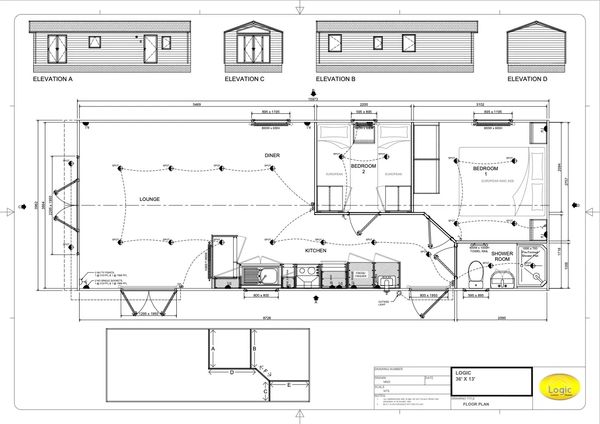

This floor plan details a Logic 36′×13′ leisure home. The layout is designed with an open-concept living area on one side and private quarters on the other.

The left portion of the unit is dedicated to a spacious, integrated living zone:

• Lounge: Occupies the far left, featuring multiple TV points and electrical sockets. Large windows and a set of double doors (measuring 2295×1950) are located on the left elevation.

• Diner & Kitchen: Positioned in the center, the kitchen includes standard appliances such as a fridge/freezer and a sink area. A secondary entrance door (900×1950) with an outside light is located near the kitchen.


The right side of the unit contains the private rooms, accessible via a small hallway:

• Bedroom 1: The primary bedroom, located at the far right, is designed for a European King Size bed and includes multiple "spot" lighting points.

• Bedroom 2: A smaller twin room featuring two European-style single beds.

• Shower Room: Centrally located between the bedrooms, it contains a 1050×700 pre-formed shower pod, a toilet, a washbasin, and a 400W×1000H heated towel rail.


• Overall Dimensions: The unit has an external length of approximately 10973 mm(roughly 36 feet).

• Elevations: The drawing includes four exterior views (Elevations A, B, C, and D) showing the wood-style siding, pitched roof, and window placements.

• Lighting: The plan uses dashed lines to indicate the circuit paths for various ceiling "spot" lights throughout the interior.
